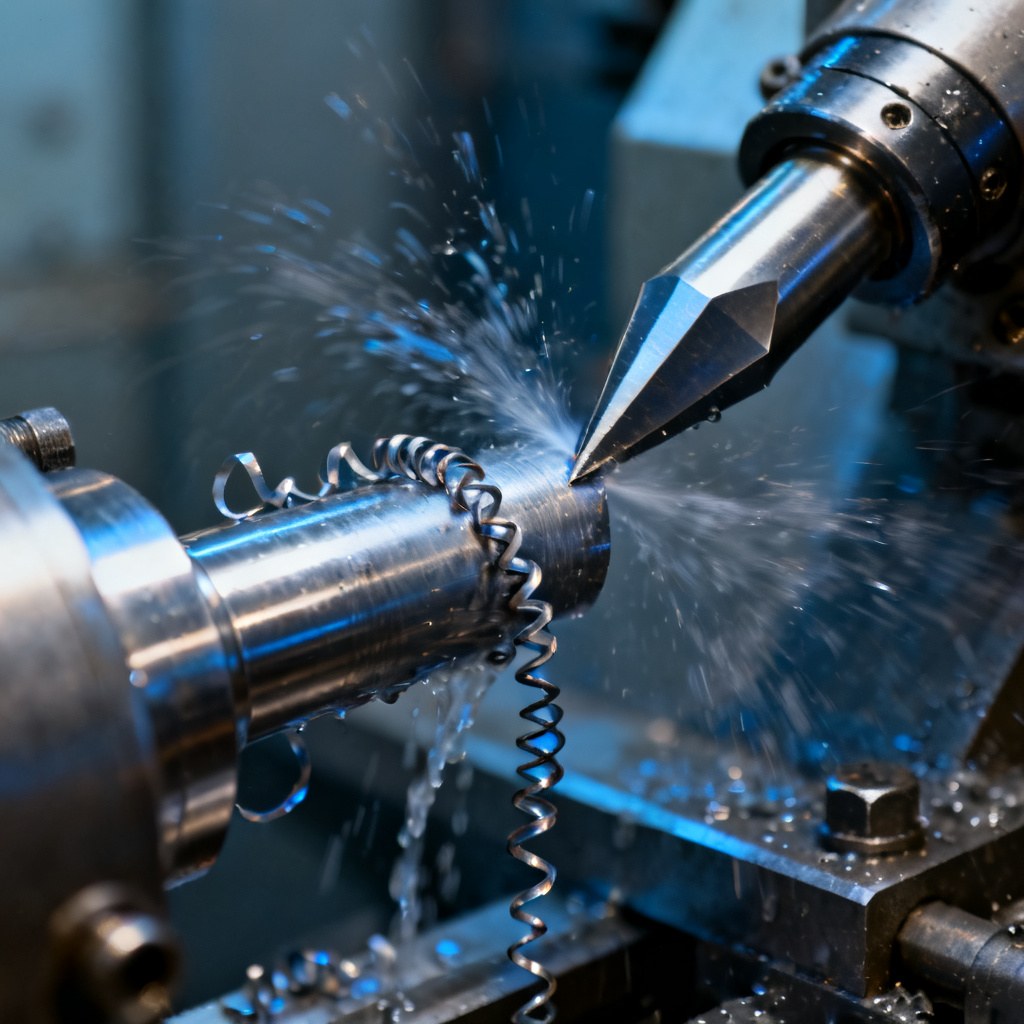

CNC Turned Shafts: Controlling Diameter, Roundness, and Surface Finish

A turned shaft fails at its tolerances, not its outline. Here is what actually controls diameter, roundness, and finish — and how to specify them so the part runs well in the field.

CNC Turned Shafts: Controlling Diameter, Roundness, and Surface Finish

A Shaft Is a System of Tolerances

A shaft drawing usually looks simple — a few diameters, a length, a keyway, maybe threads. The complexity sits underneath, in what the bearing, seal, or coupling bolted to it will actually experience. Diameter is only part of the story: roundness, straightness, and concentricity decide whether a shaft runs smooth at speed or destroys a seal in the first hundred hours. This is what a good turned shaft drawing accounts for.

What Each Tolerance Really Controls

CharacteristicWhat It GovernsTypical Watch-Outs
Diameter sizeFit with bores and bearings, clamping balanceInterference or slip fits wrong at assembly
RoundnessBearing life, vibration at speedOvality from clamp force or tool pressure
Straightness / runoutSeal contact, alignment of spaced journalsBow from stress release after machining
ConcentricityBalanced rotation, seal lip trackingBoth ends machined in separate operations
Surface finishSeal wear, fatigue, noiseFeed marks acting like micro-teeth
CylindricityContact along a seal or fit lengthBarrel or taper from tool wear

Roundness: Where It Goes Wrong

Roundness is not measured “across the part” in one spot — it is the cross-section profile independent of diameter size. A shaft can be perfect at every measured diameter and still be oval. The causes are mechanical: clamping distortion, tool pressure deflecting the part, residual stress from drawing or forging stock, and stress released by machining itself. Long thin shafts bow as material comes off, and the classic cure is strategy: rough all over, flip, finish in one continuous pass, or support centers while both ends are being machined.

Finish: What Ra Number to Ask For

Surface finish is where drawings are most often loose. Ask for the finish the part needs, not the shiniest one — every half-micron step up in finish costs cycle time:

  • Ra 1.6–3.2 µm: general turned surfaces; good for most mechanical fits and non-sealing features.
  • Ra 0.8–1.6 µm: bearing seats, fine journals — achievable with a sharp insert, correct speed and feed, and one steady finishing pass.
  • Ra 0.4–0.8 µm: seal journal surfaces; needs a finish insert or polishing and extra inspection.
  • Ra 0.2–0.4 µm: the realm of grinding rather than turning; only where dynamic seals demand.

The direction of the finish marks matters as much as their depth: circumferential marks are kinder to seal lips than the spiral left by a turning pass. Where a bearing or seal presses on, a ground finish is worth the cost.

Concentricity and the Setup Question

Concentric diameters in one setup are nearly free of error because they are cut from the same datum. Problems start when a part must be flipped: the second spindle says “this is true,” but the part quietly changes by the runout between chuck faces. The fixes are boring from one side where possible, using center holes or live centers on both ends, turning between centers, or accepting a runout tolerance where true concentricity is not needed. State the datum explicitly — the inspection method can then be agreed before the first part is cut.

Specify Inspection Alongside the Tolerances

A shaft spec is only useful when the shop and the engineer agree on how it will be checked. Tightening the value and stating the method together — for example, “roundness 0.008 mm, measured per feature on a roundness instrument” — tells the supplier exactly what the part faces. For critical parts, ask for first-article inspection with charts so the trend is visible, and define what happens if a lot drifts — agreed repair or replacement rules make the fix fast.

Say It on the Drawing: Five Points for Shafts

  1. Tight tolerances only on features that need them, with the rest left standard.
  2. Surface finish callouts on seal and bearing seats, with direction (circumferential vs. axial) if it matters.
  3. The datum for concentricity and runout, and the method of measurement.
  4. Material, hardness, heat treatment condition, and any required plating or coating.
  5. Balance requirement if the shaft runs at speed.

Turned Well Every Time

Hold-Tech runs high-precision turning and milling for shafts, pins, rollers, and similar rotating parts, with metrology that goes beyond calipers to CMM, surface roughness, and roundness checks where the drawing demands them. We welcome early drawing reviews for rotating parts — a conversation before prototyping starts is the cheapest way to get shafts that hold their tolerance and protect downstream assemblies. Send your shaft drawings to operator@hold-tech.cn or call +86-186-60386138.
